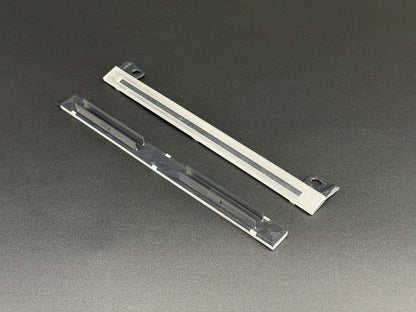

3D File - Custom Footwell Lighting Holder for Mazda MX-5 NB

Upgrade your Mazda MX-5 NB with a custom-designed footwell lighting holder specifically engineered for seamless integration into the factory interior.

Unlike universal LED strips or adhesive lighting solutions, these holders were designed around the exact geometry of the MX-5 footwell area, providing a clean, integrated appearance and a more OEM-like lighting experience.

This product is a digital download intended for individuals who wish to manufacture the holders themselves using a 3D printer.

Features

• Designed specifically for Mazda MX-5 NB / NBFL
• OEM-inspired integrated appearance
• Separate holder designs for driver and passenger side
• Optimized for WS2811 LED strips
• Precision-designed CAD models

• Instant digital download

Recommended Materials

For the best lighting performance and appearance, the following material combination is recommended:

Front Cover:

• Transparent Polycarbonate (PC)
• Provides improved light diffusion and a more uniform illumination

Rear LED Holder:

• ASA recommended for its temperature resistance and long-term durability inside vehicle interiors

The driver side holder is designed to be mounted using the factory screw location, while the passenger side holder uses an integrated clip mounting system.

Included Files

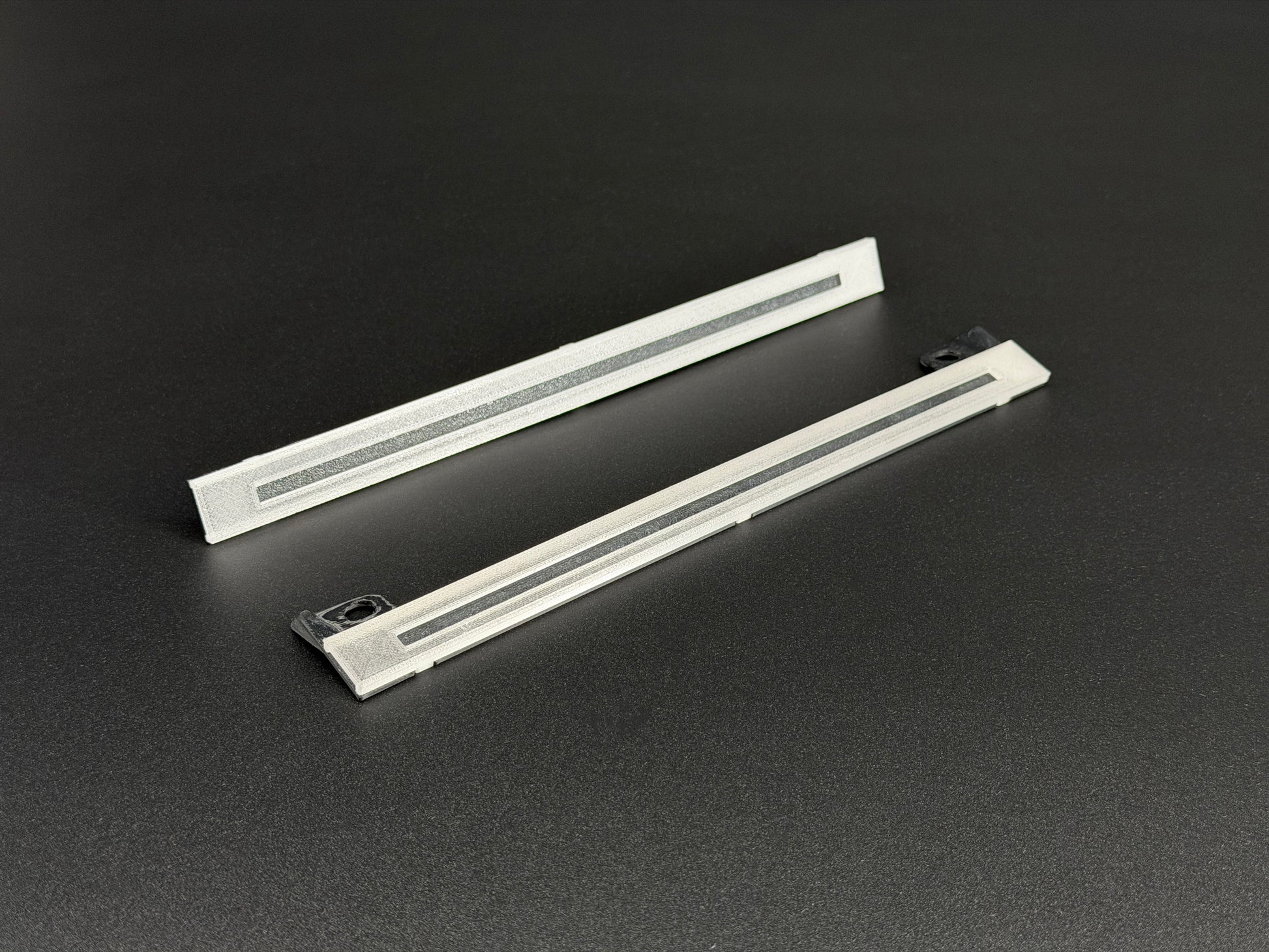

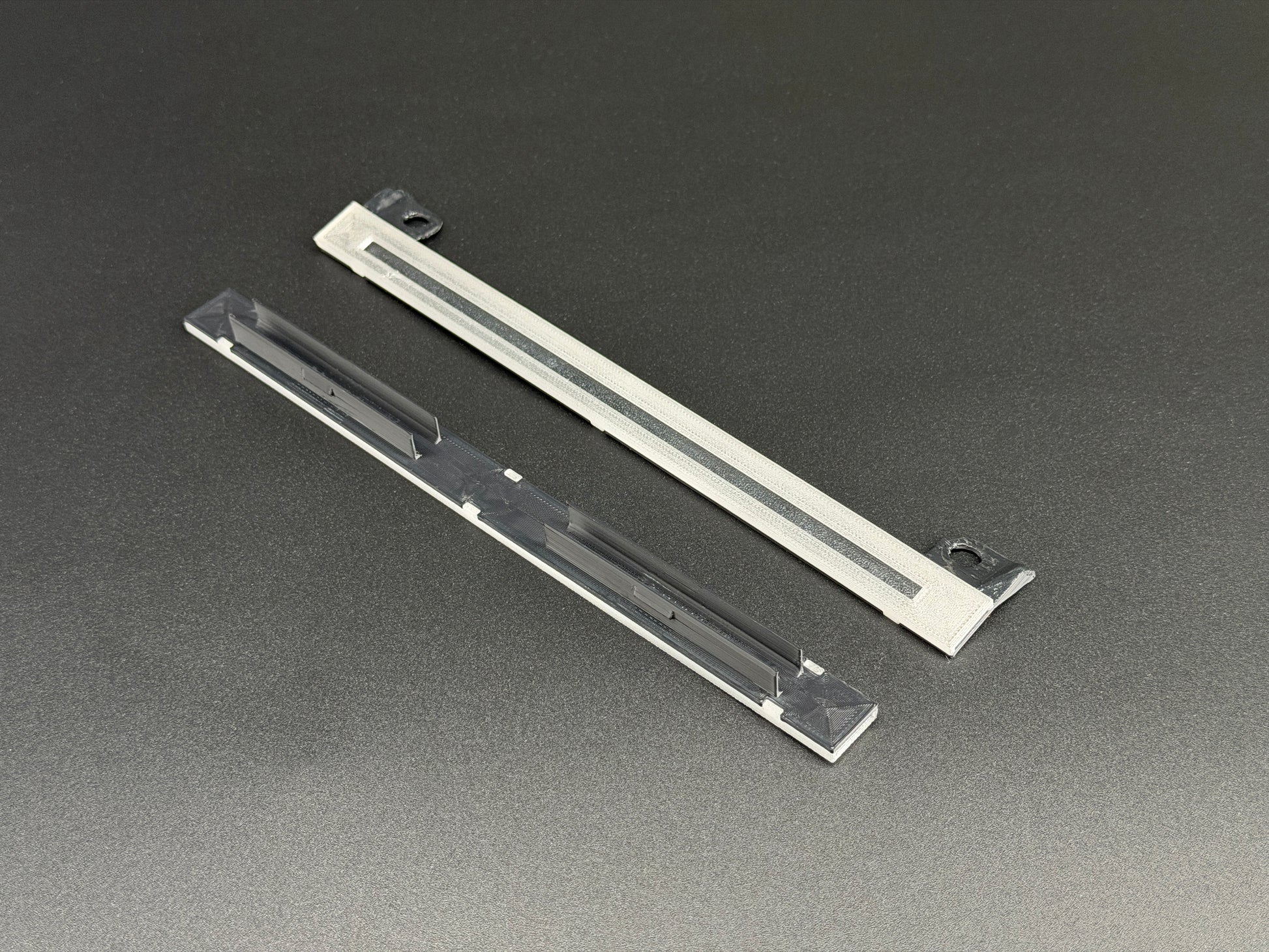

Driver Side:

• Front diffuser cover
• Rear LED holder


Passenger Side:

• Front diffuser cover
• Rear LED holder


File Formats:

• Fusion 360 source file (.f3d)
• STEP file (.step)
• STL file (.stl)
• 3MF file (.3mf)
• USDZ file (.usdz)

Compatibility

Vehicle

• Mazda MX-5 NB

• Mazda MX-5 NBFL

LEDs

Recommended:

• WS2811 LED strips

Important:

The holders were specifically designed around WS2811 LEDs to ensure proper fitment and light distribution.

Users are free to modify the CAD files for compatibility with alternative LED strips or lighting solutions if desired.

Masoumi Customs Ecosystem

If you plan to integrate the footwell lighting with other Masoumi Customs products using a shared controller, purchasing the physical product is recommended instead of manufacturing the parts yourself.

The physical version already includes:

• Pre-installed LEDs
• Wiring harness
• Connectors
• Plug-and-play integration with compatible Masoumi Customs lighting products

This significantly reduces installation time and eliminates the need for soldering or additional wiring work.

License & Usage Restrictions

This product is sold for personal, non-commercial use only.

By purchasing or downloading this product, you agree to the following terms:

Permitted

• Printing the model for personal use.
• Modifying the design for personal projects.
• Using the files for your own vehicle.

Prohibited

• Selling printed copies of the model.
• Selling, sharing, distributing, uploading, gifting, or transferring the digital files.
• Using the files or printed parts for commercial purposes.
• Modifying the files and selling or distributing the modified versions.
• Reproducing any part of the design for commercial gain.

All intellectual property rights remain the property of Masoumi Customs.

Unauthorized reproduction, redistribution, file sharing, commercial use, or resale of either the digital files or printed parts is strictly prohibited and may result in legal action.

Disclaimer

This is a digital product only. No physical item will be shipped.

Due to the nature of digital products, refunds, returns, or exchanges cannot be provided after purchase.

Masoumi Customs is not responsible for installation errors, printer settings, material selection, LED compatibility, vehicle modifications, or damages resulting from the use of these files.

The buyer is responsible for verifying compatibility with their specific vehicle, LED configuration, and printing setup before manufacturing or installation.
