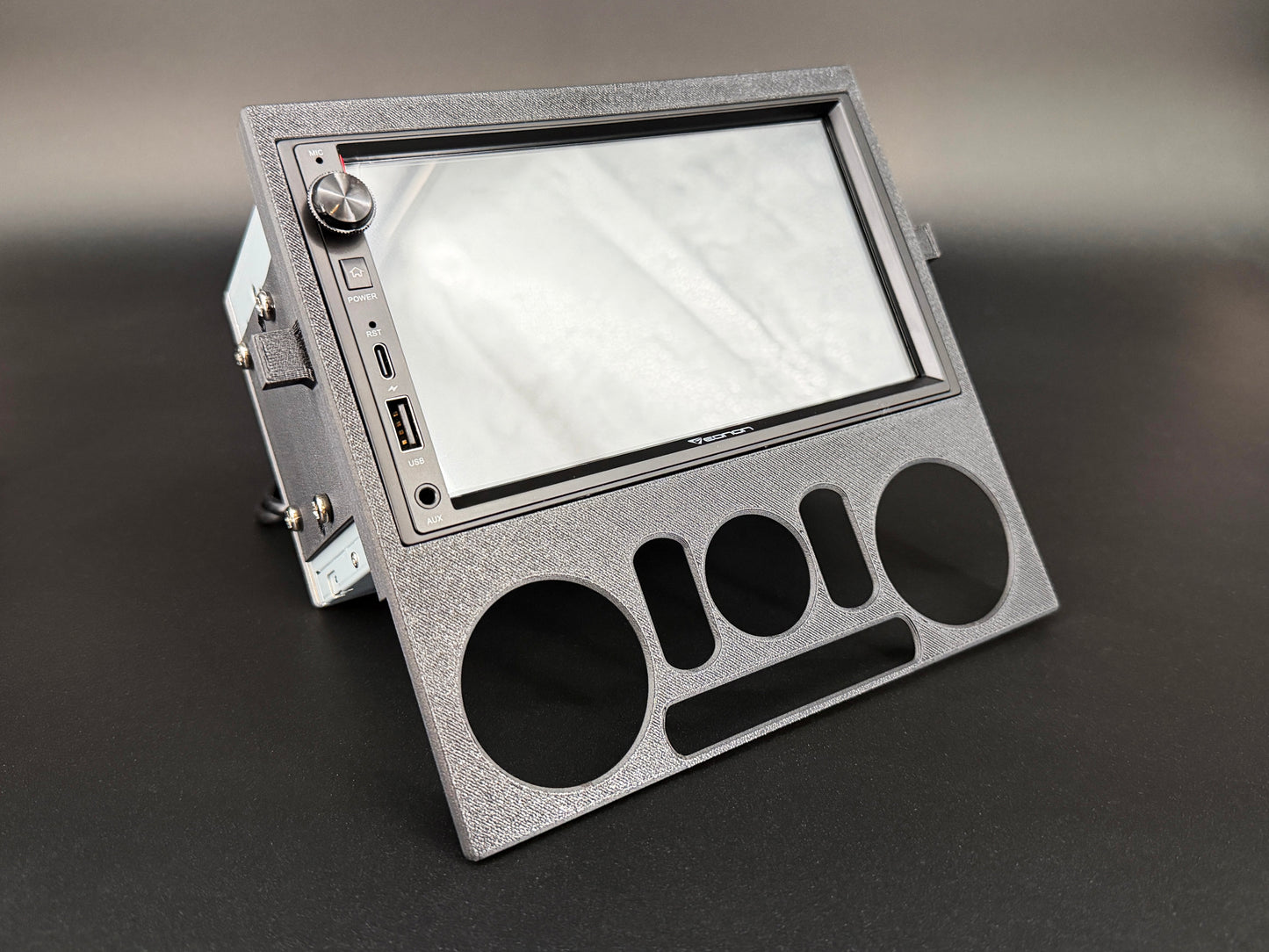

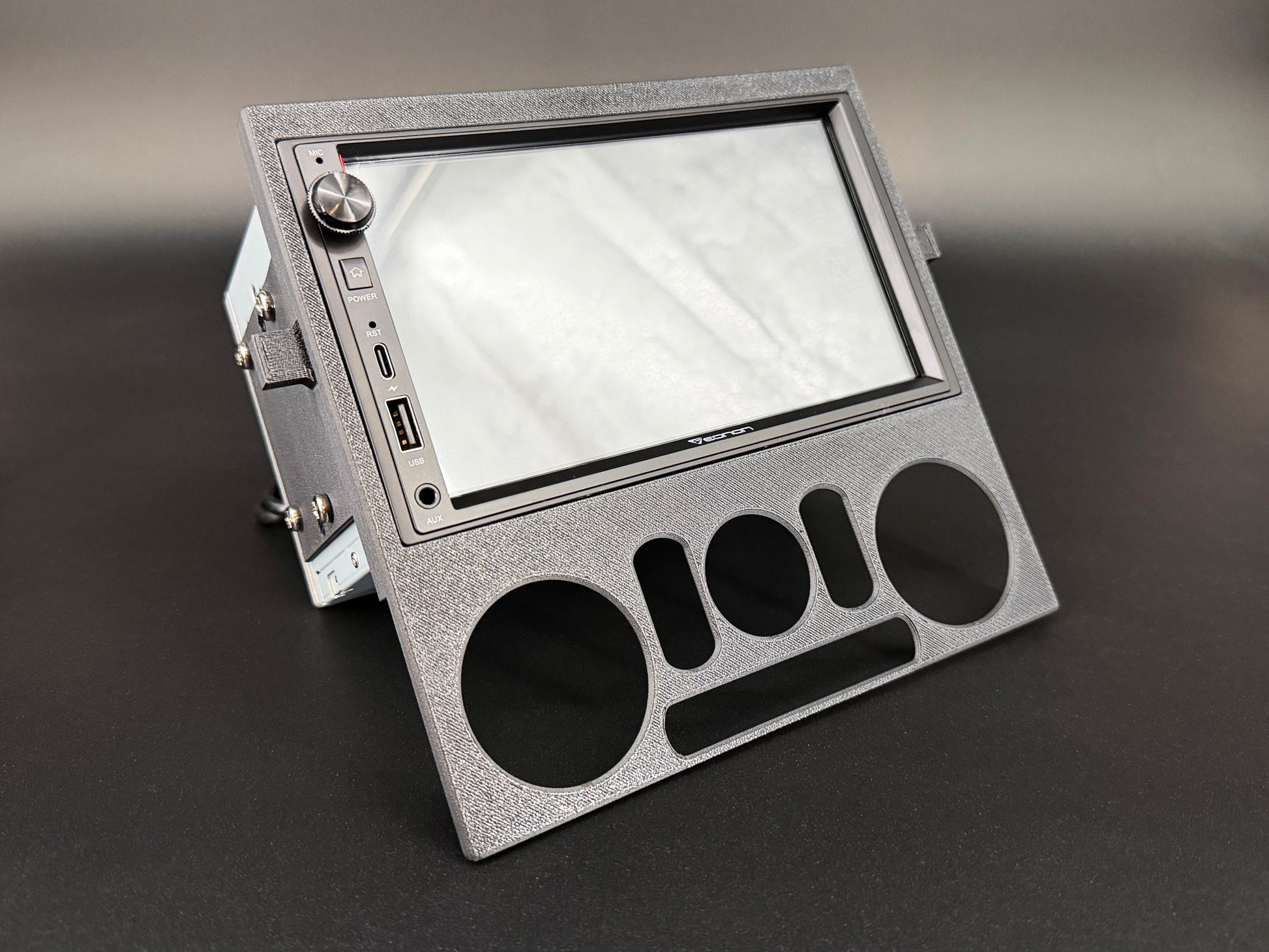

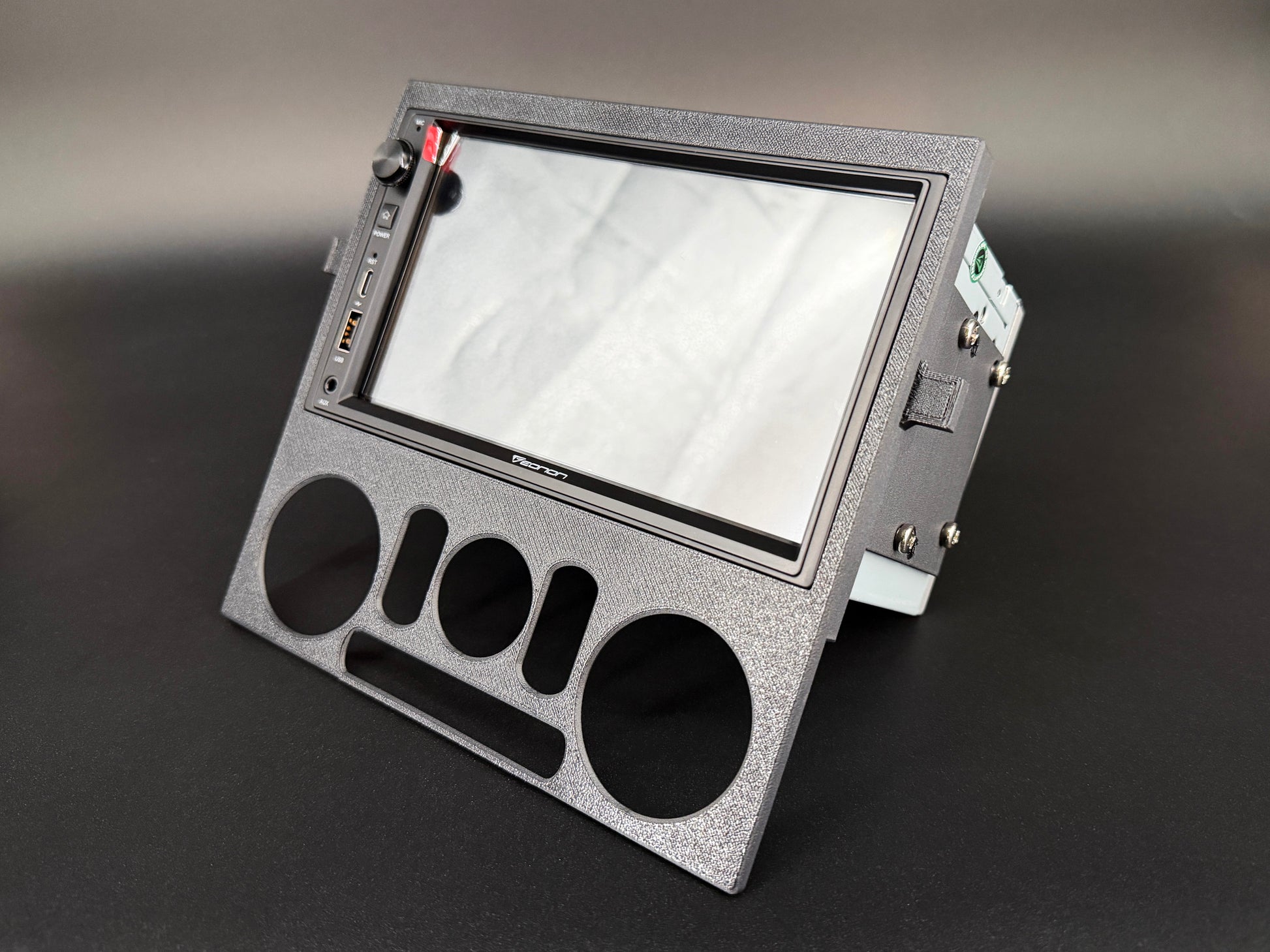

Custom Double DIN Radio Holder for Eonon X3 for Mazda MX-5 NB

Upgrade your Mazda MX-5 NB / NBFL with a custom-designed double DIN radio holder specifically engineered for the Eonon X3 head unit.

Unlike universal adapters, this holder was designed around the exact dimensions and mounting requirements of the Eonon X3, providing a clean, integrated appearance and an OEM-inspired fit within the dashboard.

This product includes a fully manufactured physical radio holder produced by Masoumi Customs. No digital files are included with this purchase.

Features

• Designed specifically for Mazda MX-5 NB / NBFL
• Engineered exclusively for the Eonon X3 Double DIN head unit
• OEM-inspired seamless dashboard integration
• Manufactured using high-temperature-resistant materials
• Printed using UV-resistant automotive-grade materials


Included

• 1x Physical radio holder for Mazda MX-5 NB / NBFL


Not Included

• Eonon X3 head unit
• Climate control knobs
• Mounting screws
• Dashboard trim pieces
• Digital design files

Climate control knobs are sold separately.

Compatibility

Vehicle

• Mazda MX-5 NB
• Mazda MX-5 NBFL

Radio

• Eonon X3 Double DIN Head Unit only

Important Compatibility Information

This holder was designed exclusively around the dimensions, mounting points and front frame geometry of the Eonon X3 head unit.

Compatibility with any other radio model is not guaranteed.

Other radios may differ in:

• Mounting hole positions
• Chassis dimensions
• Front bezel dimensions
• Front frame thickness
• Installation depth

As a result, other radios may require additional measurements, modifications or redesign work by the customer.

Customers wishing to install a different radio model should purchase the separate digital version of this product and modify the design themselves to suit their specific head unit and installation requirements.

Masoumi Customs only recommends and supports installation with the Eonon X3 head unit.

Required Hardware

For installation, you will need:

• 4 to 6x M5 countersunk screws

The use of countersunk screws allows the radio holder to sit flush against the radio chassis and enables smooth insertion into the dashboard without interference.

Installation Notes

For proper installation, the two vertical side rails located on the left and right side of the factory climate control trim panel must be removed.

Removing these factory plastic rails allows the lower section of the radio holder to sit flush against the climate control assembly and creates a seamless OEM-style appearance.

The radio holder itself does not require any screws, clips or permanent modifications to secure it inside the dashboard.

Installation process:

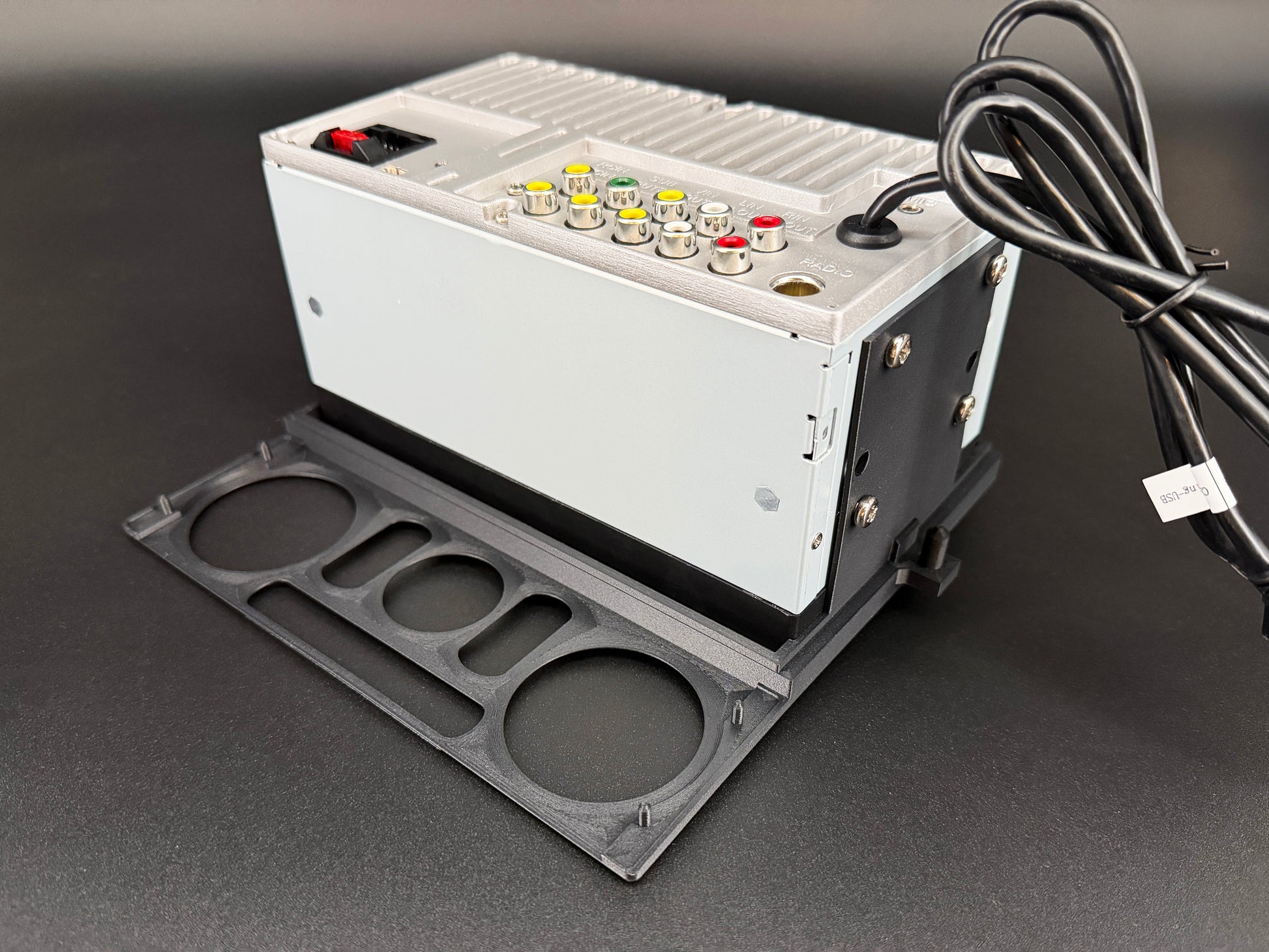

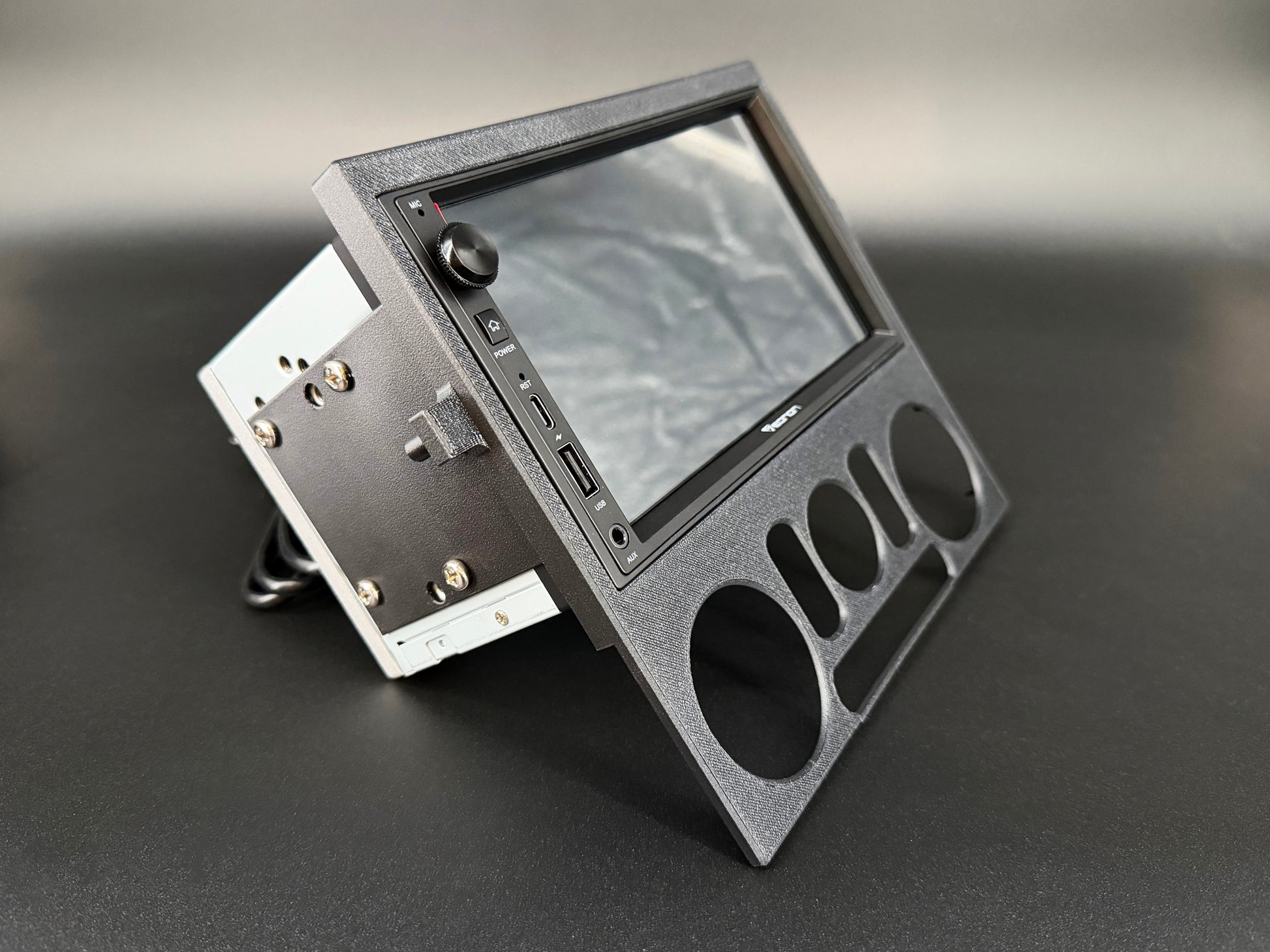

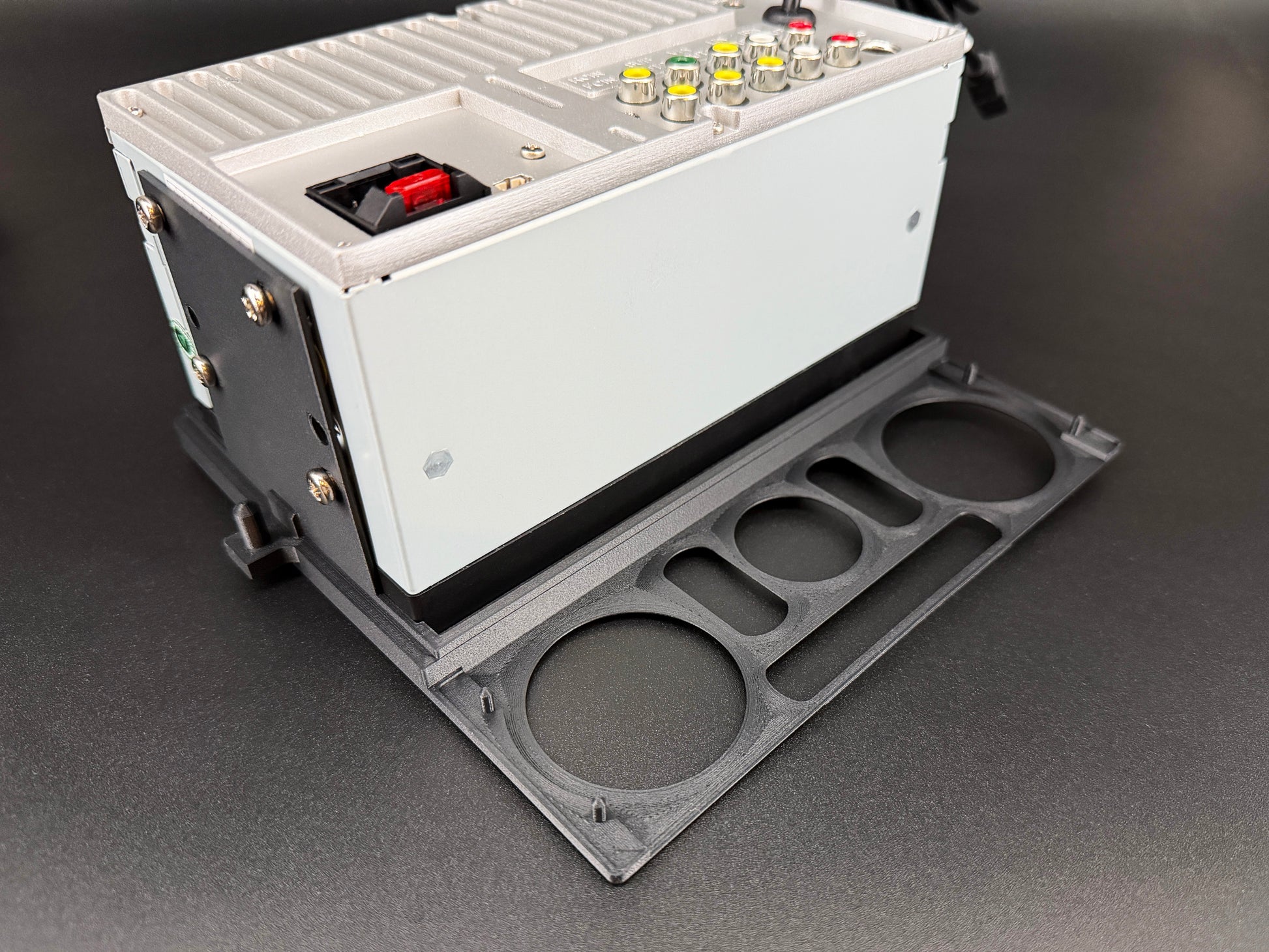

1. Attach the holder to the Eonon X3 using 4 to 6 M5 countersunk screws.
2. Remove the two factory vertical side rails from the climate control trim assembly.
3. Slide the radio and holder assembly into the dashboard opening.
4. Reinstall the factory dashboard bezel.

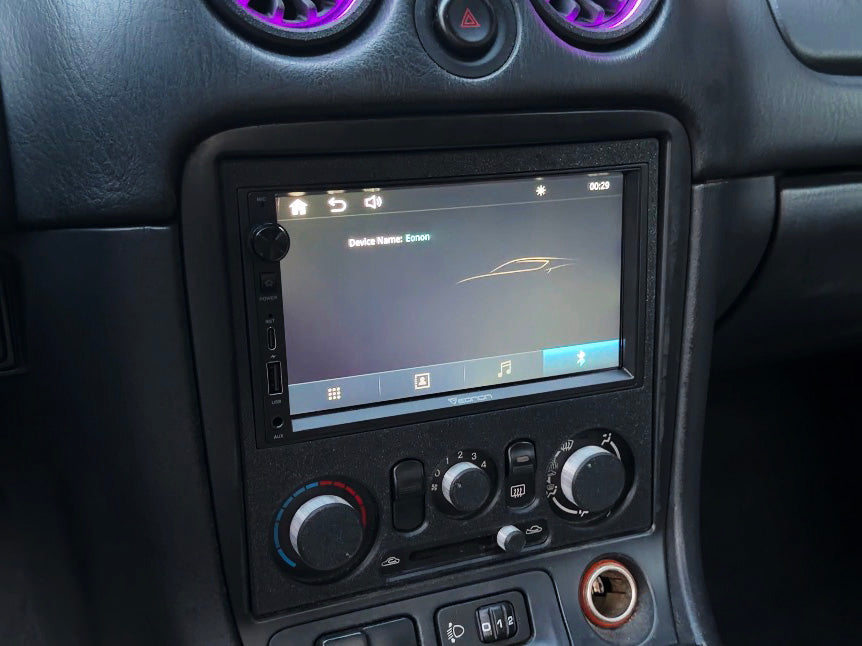

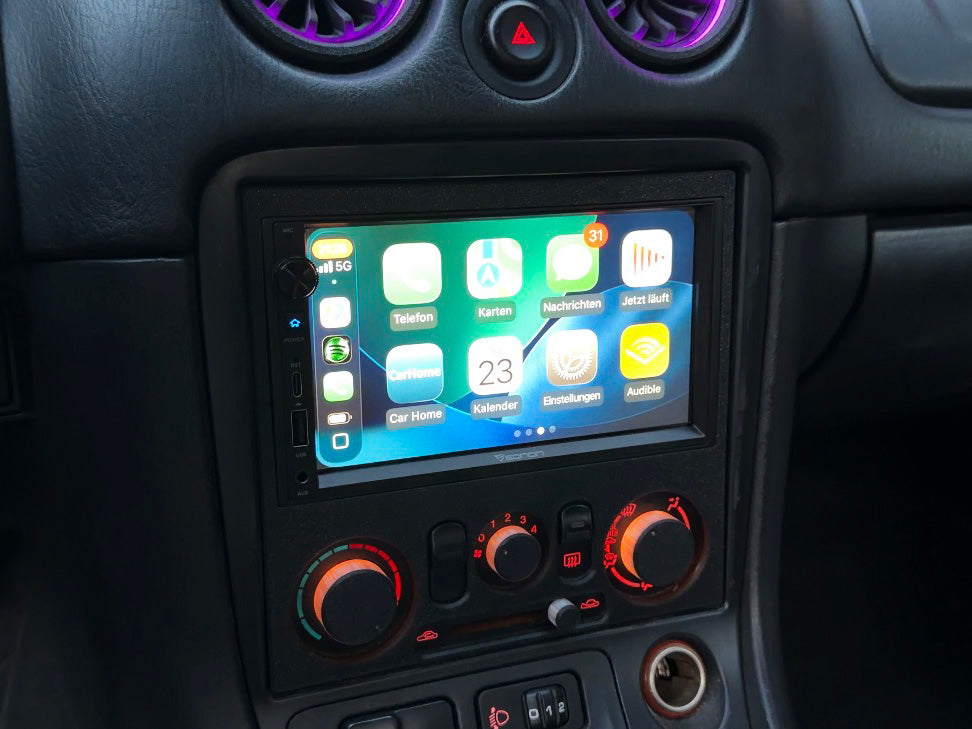

Once the dashboard bezel is clipped back into place, it retains the radio holder securely inside the dashboard and prevents movement or removal during normal operation.

Radio Dimensions

The holder was designed specifically around the dimensions of the Eonon X3 Double DIN head unit:

• Width: 178 mm (7.01")
• Height: 100 mm (3.94")
• Depth: 178 mm (7.01")

Disclaimer

This product includes a physical manufactured part only. No digital files are included.

Masoumi Customs is not responsible for installation errors, improper modifications, incorrect hardware selection, compatibility issues with third-party radios, or damages resulting from installation or use.

The customer is responsible for verifying compatibility with their vehicle and intended radio configuration prior to purchase.
